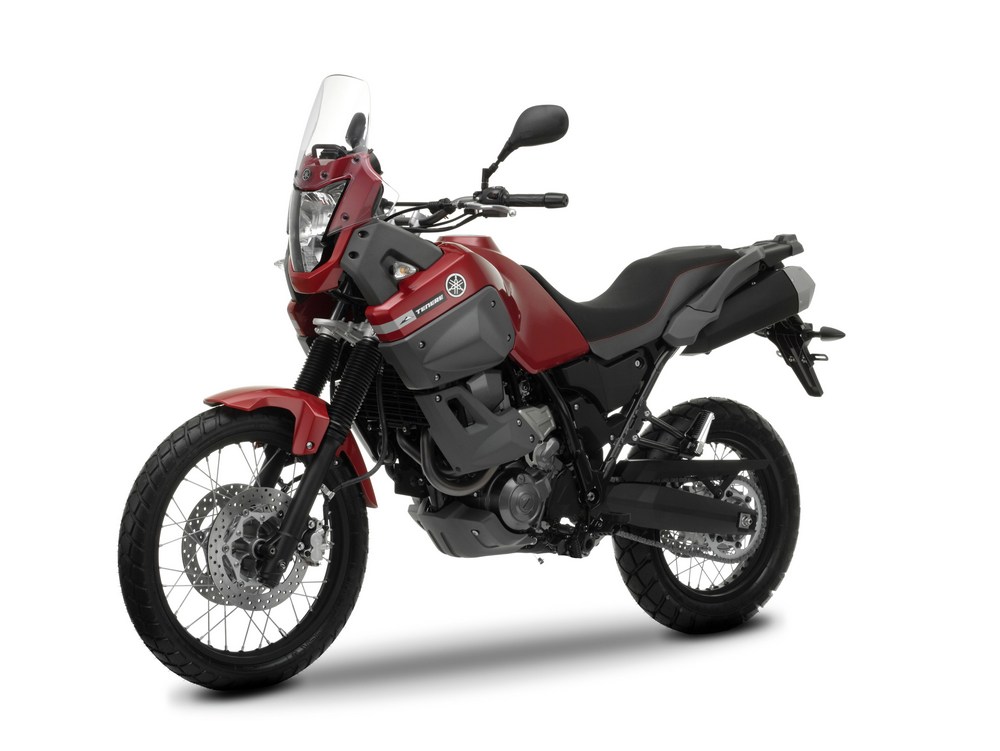

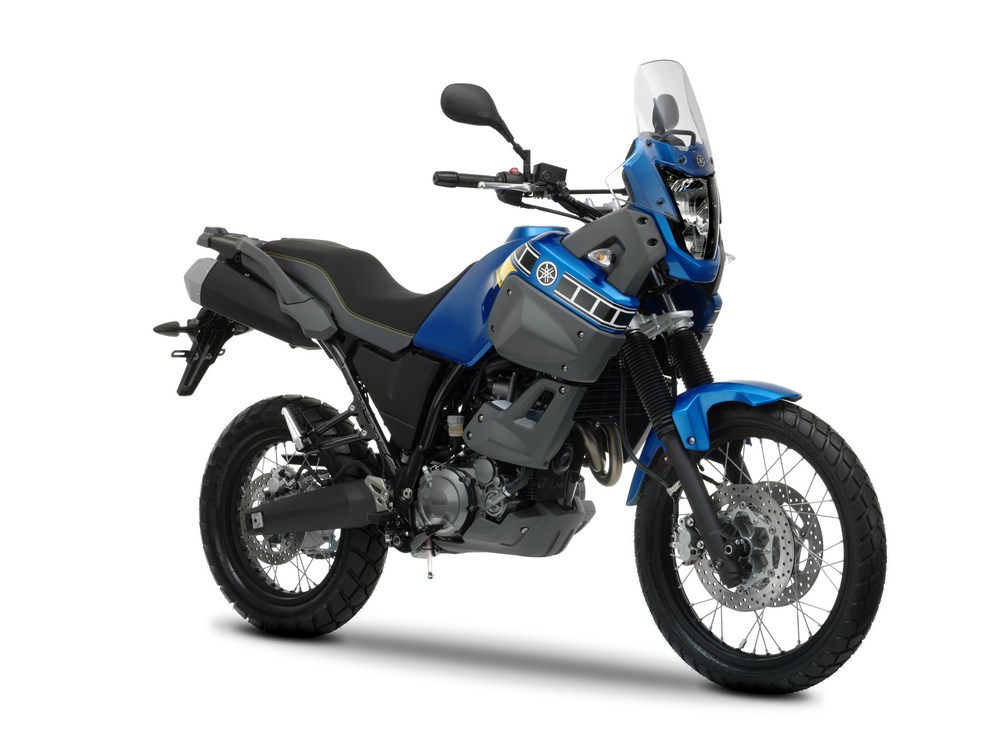

2009 Yamaha XT660Z Tenere

2009 Yamaha XT660Z TenereYamaha XT660Z TenereYamaha XT660Z

Technical Specifications

Engine

  • Type - Liquid-cooled, 4-stroke, single cylinder, 4-valve, SOHC
  • Displacement - 660 cc
  • Bore x stroke - 100.0 x 84.0 mm
  • Compression ratio - 10.0:1
  • Max. Power - 35.0 kW (48 PS) @ 6,000 rpm
  • Max. Torque - 58.0 Nm (5.92 kg-m) @ 5,500 rpm
  • Lubrication system - Dry sump
  • Fuel supply system - Fuel injection
  • Clutch type - Wet, multiple-disc coil spring
  • Ignition system - TCI
  • Starter system - Electric
  • Transmission system - Constant mesh, 5 speed
  • Final transmission system - Chain
  • Primary reduction ratio - 75/36 (2.083)
  • Secondary reduction ratio - 45/15 (3.000)
  • Gear ratio, 1st gear - 30/12 (2.500)
  • Gear ratio, 2nd gear - 26/16 (1.625)
  • Gear ratio, 3rd gear - 23/20 (1.150)
  • Gear ratio, 4th gear - 20/22 (0.909)
  • Gear ratio, 5th gear - 20/26 (0.769)

Chassis

  • Frame - Steel tube diamond shaped
  • Front suspension - Telescopic forks
  • Front wheel travel - 210 mm
  • Rear suspension - Swingarm (monocross)
  • Rear wheel travel - 200 mm
  • Caster angle - 28°
  • Trail - 113 mm
  • Front brake - Double disc, Ø 298 mm
  • Rear brake - Single disc, Ø 245 mm
  • Front tyre - 90/90-21 M/C
  • Rear tyre - 130/80-17 M/C

Dimensions

  • Overall length - 2,246 mm
  • Overall width - 865 mm
  • Overall height - 1,477 mm
  • Seat height - 895 mm
  • Wheelbase - 1,505 mm
  • Min. ground clearance - 245 mm
  • Wet weight (including full oil and fuel tank) - 206 kg
  • Fuel capacity - 23 litres
  • Oil capacity - 2.9 Litres

Specification are subject to change without notice, in accordance with national regulation and legislations
