2001 Suzuki GSX-R HARRIS Magnum 4

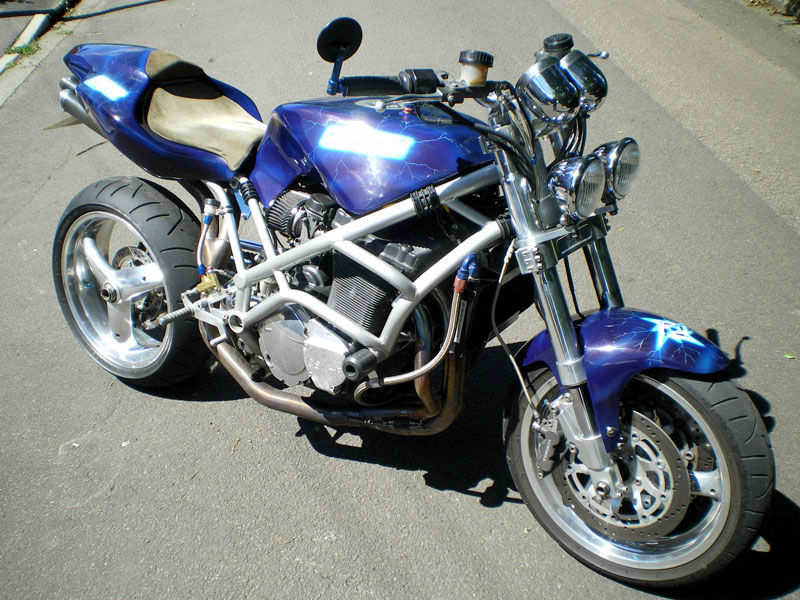

Suzuki GSX-R HARRIS Magnum 4

This bike is for sale, please contact phil@sdmcc.net for details.

Here we have a Suzuki GSX-R HARRIS Magnum 4. It was featured in STREETFIGHTERS Magazine issue 131. This is THE ultimate Streetfighter and gathers a crowd wherever it goes. She ran a 10.96 on the Quarter Mile at Avon Park Raceway at the Bulldog Bash.

I am the second owner of this bike which I purchased from Steve Waterman who originally built the it between 2001/2 before I purchased it in 2004. The engine is from a 1992 Suzuki GSX-R 1127 M model and the frame is number 998 from Harris Performance which was manufactured in 1997. Since the frame and engine are from different years the DVLA issued a Q plate.

The bike has been maintained to a very high standard, nothing has been over looked or bodged and have dozens of receipts.

The Ohlins shock was stripped and re built by Harris, the 36mm K model carbs have just been completely rebuilt at a cost of £500 with a new Factory Jet kit, Suzuki seals and washers. I stripped and rebuilt the Nissin 6 pot calipers last year replacing the main seals, dust seals and brake pads. It now stops like a virgin fanny about to walk into a Viagra fuelled cock party!!

Specification.

Frame and bodywork.

1997 Harris Magnum 4, high tensile steel, bronze welded joints, powder coated. One off subframe. Alloy Harris Magnum fuel tank, Metallica ‘Ride The Lightning’ esque paint job by Pastec. Polishing by Bracknell polishers.

Engine.

Suzuki GSX-R 1127, gas flowed head, stage 3, K&N filters, Dyna coils, Taylor leads, Akrapovic Header pipes, carbon Devil end cans made by Eyeball engineering, one off two piece ignition and crank casing covers, DID gold link chain, Talon sprockets.

Front End.

GSX-R 750L upside down forks re valved by Maxton, Polygon Pest yokes, GSX-R 750L wheel, EBC Pro Lite discs, GSX-R 750 WR 6 Pot callipers, Moto flex by BSR/Aerotek braided brake hoses, Renthal bars, AP master cylinders, Bandit clocks, one off clock mount. Carbon front mud guard

Rear End.

Harris single sided swinging arm (no longer manufactured) Ohlins shock, Triumph T595 wheel, T595 caliper, T595 torque arm, Harris rear sets, rear subframe modded to take carbon MV Augusta seat unit. Harris master brake cylinder, braided hose.
