Yamaha TZ500

TZ250 | TZ350 | TZ750 | TZ Gallery

Yamaha TZ500Yamaha's smaller works four cylinder 2 stroke racer, the YZR500, or OW19, first saw competition in the 1973 French Grand Prix, won by the late, great, Jarno Saarinen. The bike had originally been little more than basically a "double" TZ250, including a rather large dose of the 250's peakiness, and had been fitted with reed valve induction to tame it's power delivery by the factory after the "Flying Finn", Saarinen, had made comment on the difficulty he had controlling this type of power surge from such a potent machine.

From it's initial successful debut the bike underwent regular changes with each new version, some changes were advantageous, and others not so, until the introduction of Yamaha's first production 500cc racer, the TZ500 G.

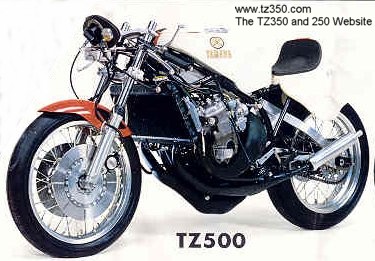

The "G" was a piston port four cylinder racer featuring mechanically operated powervalves to make it a little more "rider friendly". These operated by cable from the primary gears.

Unlike the 750, this bike shared little in common motor-wise with the smaller twins, with it's entirely new crankcases featuring alternate ( individual ) cylinder barrel bolt pattern ensuring that no-one could "try out" a pair of 250 top ends as an experiment!! Internal gear ratios were able to be changed easily, with access to the "cassette" style gear arrangement being available behind the primary drive cover. The original spares kit had various different gears to choose from. Suspension wise, the forks came with air caps and the rear shock was adjustable for both compression and rebound damping as well as spring pre-load.

The bike came with the same fork sliders as the 750 but had different internals. The old cast iron calipers were mounted to the forks in the usual way except that the mounting lugs had the backs cut away to allow quick removal during wheel changes. The TZ500G was not a brilliant bike compared to the opposition and was renowned for gearbox seizures, a no doubt terrifying experience.

Just two more models of TZ500's rolled off the assembly line following the "G", they were the "H" and "J".

The J model featured new Nissin front brakes with new square shaped pads. Brake disc diameter went up to 320mm from the G and H's 300mm.

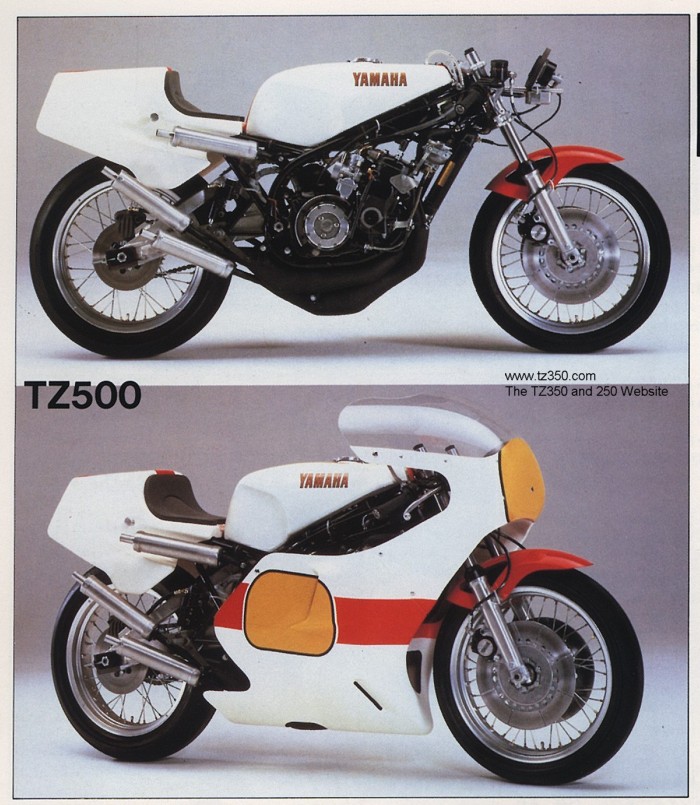

Yamaha TZ500 HNeither the H or J was particularly competitive at World Championship level, so the factory ceased production of customer TZ500's in 1982, but has continued it's long line of works YZR500's right up to 2001 when development for the M1 MotoGP racer took over in preparation for it's debut season in 2002.

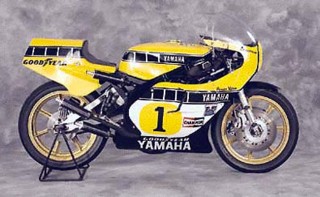

Ex- Kenny Roberts 1980 OW48 works TZ500

Kenny Roberts TZ500This bike featured a 56mm bore, 50.6mm stroke, piston port induction with electronically controlled guillotine style exhaust valves, running either 34, 36 or 38mm round or flat slide Mikuni carbs. It also had provision for variable gear ratios on the first four speeds.

The frame began initially as a tubular steel item, later changed to a box section aluminium unit painted black to "fool" the opposition. It didn't. It also featured externally adjustable fork damping.

Front wheel was an 18" diameter by 2½" wide, rear was 17" with a choice of either 3½ or 4" width.
