During the 1972
Yamahaãs works riders campaigned machines
in the 250 and 350cc classes that utilised liquid
cooling and which acted as prototypes for the
following seasons production racers.
The liquid cooling
employed on the new TZãs sought to address
the Achilles heel of the TR3/TD3 air cooled
racers ¹ their propensity to nip-up and
established a line of of racing machinery whose
success is unparallelled in motorcycle road
racing. The A series models newly developed
engine was housed in a set of cycle parts that
were essentially the same as those employed
by the previous aircooled racers with drum brakes
and twin rear shock absorbers. The subsequent
years B series machines continued in much the
same way, however a major revision occurred
1976 with the introduction of the C÷
series.
The new models
employed a monoshock rear end and front and
rear disk brakes. The engine had benefited from
the ongoing development of the works supported
bikes resulting in the 250cc producing 52bhp
whilst the 350cc machine had gained 4bhp. Subsequent
development was limited to detail changes until
the the much needed introduction of the F in
1979, a consequence of Yamahaãs R&D
resources being committed to the development
of new road models, partly in response to tighter
emission controls and partly as a result of
their battle with Honda for supremacy in the
market place.
Yamaha also produced
a limited number of TZ50 production race bikes
between 1990 and 1991 specifically for use in
a Japanese National Championship. Subsequently
a very limited number of the machines were exported
to the United States and Europe.
| Yamaha TZ350 |
 |
ex-Gary Cowan & lap record holder
@ Ulster GP.
Image kindly provided by www.classic-auctions.co.uk.
|

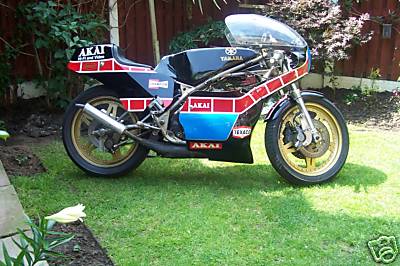

| Yamaha TZ350 |
 |
Maxtron front, maxtron rear shock, lockheed
calipers, brembo discs, twin disc, spondon
adjustable yokes, 38mm reverseslide carbs,
scitzu rev counter. |

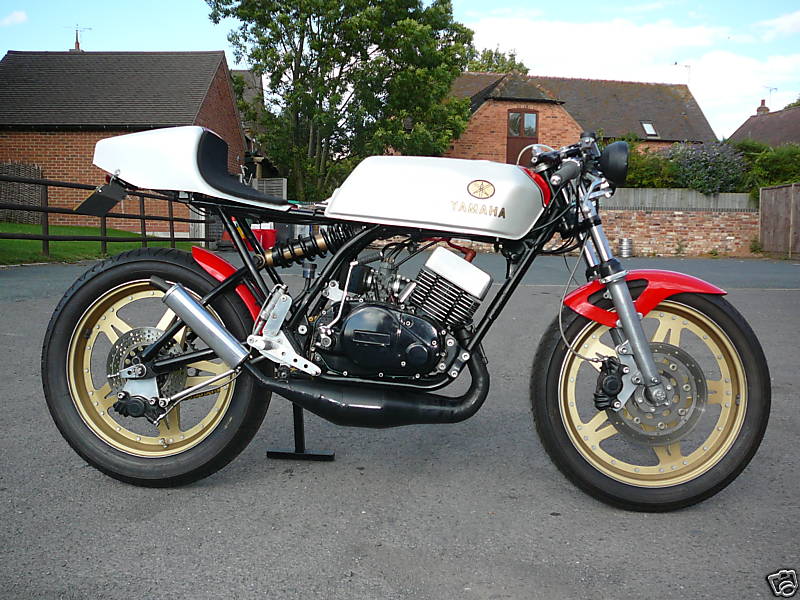

| 1976 Yamaha RD350B TZ Replica |
 |
TZ Replica/stripped cafe racer
Based on a 1976 RD250 with LC rear end,
astralite wheels, ap lockheed brakes,
painted in tz colours, rd350b motor, motoplat
total loss ignition, 40/1 premix. |

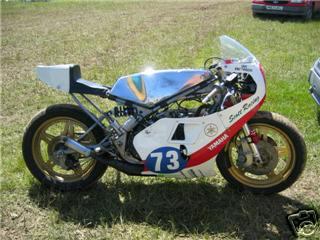

| Yamaha TZ 350 |
 |
TZ 350 Harris G spec engine
Reverse slide carbs, TZL
ignition, new maxton shock,new lockeed
calipers.
2006 PRE TT classic winning
bike ridden by Ian Pattinson. 2007 runner-up
in the FRC Championship ridden by Jamie
O'Brien. |
1975 Yamaha TZ350C |
 |
More Yamaha TZ350
info.. |
| 1978 Yamaha TZ350 |
 |
ex Tony Green this bike is a genuine
prototype the only one ever built using
this design chassis.
Ignition cross over pipes, Campagnola
magnesium wheels, Brembo dics and calipers,
Marzocchi forks. |

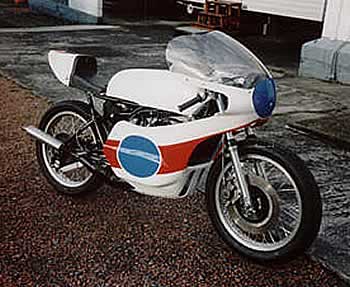

| 1978 Yamaha TZ350E |
 |
This bike was originally supplied to Chris
Palmer and subsequently owned by Dennis
Irvine of Aberdeen. Both previous Scottish
Champions. Dennis fitted the "G"
spec engine and exhaust system. |
1979 Yamaha TZ350G |
 |
|

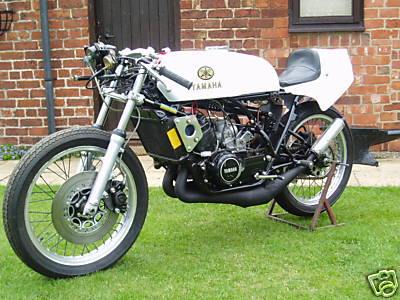

1977 Yamaha TZ350E |
 |
|
| 1980 Yamaha TZ350 G |
 |
G spec 3G3 cylinder and head, 38mm power
jet carbs.
|
| 1981 Yamaha TZ350G |
 |
Spondon frame. The engine has, 250cc primary
gears, barrels that are steel lined by Farhon
Eng with "G" spec porting, the
pistons are by Wiseco, the expansion boxes
are by Andy Bacon and are in good condition,
the clutch centre has been modified by Greenham
racing with "top hat" spring inserts,
the water pump is a 12 volts item replacing
the origional crank driven item, the temp
gauge is a 12 volt item, the ignition is
12 volt by Pro Digital and is programmable
with two ignition maps,the power source
for all electrical items is supplied by
a 3500ma stick, the carburetors are 38mm
powerjets with stone guards. The rev counter
is a Scitsu unit. |
| Yamaha TZ350 B |
 |
|
| Yamaha TZ350 G |
 |
|

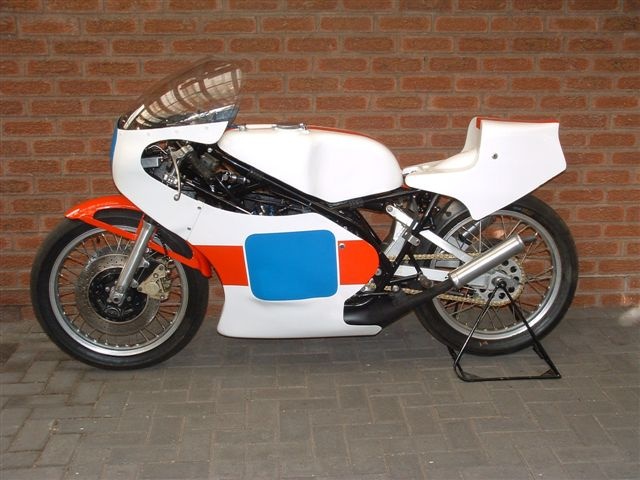

| Yamaha TZ350G |
 |
Initially it was a Tz350 "A"
which has been modified by reputable Chassis
Guru's Spondon. |
|
